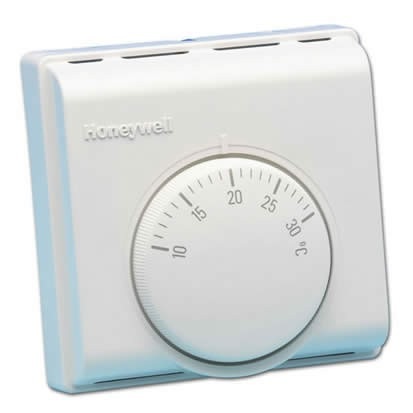

Room thermostat 230 Vac, with SPDT output, T6360

Room thermostat 230 Vac, with SPDT output, T6360
Wall mounted line voltage room thermostat.
For general purpose control of gas valves, zone valves, circulation pumps, ventilators, boilers etc. in heating or cooling systems.
Approvals CE
Protection class IP30
Switch function/capacity SPDT 230 Vac, heating terminal 10 A resistive, 3 A inductive; cooling terminal 6 A resistive, 2 A inductive
Terminal max. wire size 4 mm2
Temp. setpoint range 10 ... 30 oC
Differential fixed 1 oC
Temperature element vapour filled
Temp. element place built in
Heating /Cooling application H or C
Earthing double insulated
Housing (HxWxD) 83 mm | 83 mm | 40 mm
Additional description Lamp is generally supplied potential free, and can be wired to indicate heating or cooling operation, or boiler lockout.
Heat anticipatorManual operation functionsLamp functionTemperature scaleTamperproof coverProduct literature languageType
MultilingualT6360A1004  PDF
wiring dependentMultilingualT6360A1012  PDF
MultilingualT6360B1002  PDF
wiring dependentMultilingualT6360B1010  PDF
EnglishT6360B1028  PDF
heating onEnglishT6360B1036  PDF
yesEnglishT6360B1069  PDF
1..5EnglishT6360B1085  PDF
yesMultilingualT6360B1093  PDF
suppliedEnglishT6360B1168  PDF
on/off switchMultilingualT6360C1000  PDF
on/off switchwiring dependentMultilingualT6360C1018  PDF
Accessories
DescriptionAdditional Product Type
Range stops, to limit setpoint adjustment (20 pieces)F42006646-001
Opaque tamperproof cover to prevent thermostat from damageF42007110-001
Transparent tamperproof cover to prevent thermostat from damageF42007110-002
Wall-plate to allow mounting onto different wall-boxesF42007789-001
