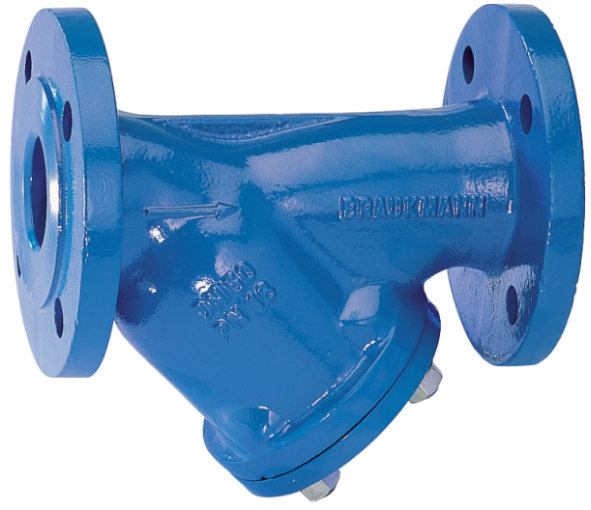

Cast steel Y-strainer with flange connections, FY71P

Cast steel Y-strainer with flange connections, FY71P
FY71P strainers are used in commercial and industrial applications, as well as for central water supply systems within the limits of their specifications. They protect systems against malfunction and corrosion damage resulting from the ingress of foreign bodies such as welding beads, sealing materials, metal cuttings and rust etc. This extends the life of the downstream system and prevents early failure.
Media Water, oil and compressed air up to 40,0 bar and for steam corresponding to DIN 2401, pressure rating PN 40
Body material cast steel
Body finishing powder coating
Port connection type flanges
Static pressure PN40
Integral filter 0.5 mm
Mounting position horizontal or vertical
Additional description
• Low flow resistance because of good dynamic flow design of body
• Powder coated inside and outside, which is toxicologically and physiologically safe
• Stainless steel construction gives triple sieve good corrosion resistance
• Large strainer mesh surface area provides high dirt acceptance capacity
• Dirt particles or condensate in compressed air systems can be flushed out with blanking plug removed
With triple sieve, mesh size approximately 0,5 mm
DN sizeType
mm
15FY71P-15B  PDF
20FY71P-20B  PDF
25FY71P-25B  PDF
32FY71P-32B  PDF
40FY71P-40B  PDF
50FY71P-50B  PDF
65FY71P-65B  PDF
80FY71P-80B  PDF
100FY71P-100B  PDF
125FY71P-125B  PDF
150FY71P-150B  PDF
Spare Parts
DescriptionAdditional Product Type
Replacement sieve, mesh size 0,5 mm, for size DN 15ES71Y-15
Replacement sieve, mesh size 0,5 mm, for size DN 20ES71Y-20
Replacement sieve, mesh size 0,5 mm, for size DN 25ES71Y-25
Replacement sieve, mesh size 0,5 mm, for size DN 32ES71Y-32
Replacement sieve, mesh size 0,5 mm, for size DN 40ES71Y-40
Replacement sieve, mesh size 0,5 mm, for size DN 50ES71Y-50
Replacement sieve, mesh size 0,5 mm, for size DN 65ES71Y-65
Replacement sieve, mesh size 0,5 mm, for size DN 80ES71Y-80
Replacement sieve, mesh size 0,5 mm, for size DN 100ES71Y-100
Replacement sieve, mesh size 0,5 mm, for size DN 125ES71Y-125
Replacement sieve, mesh size 0,5 mm, for size DN 150ES71Y-150
Załączniki
No. Document type (Language) File name File size
1. Specification sheet (English) PDF fy71p-pd-en0h1125ge23r0808.pdf 198 KB
