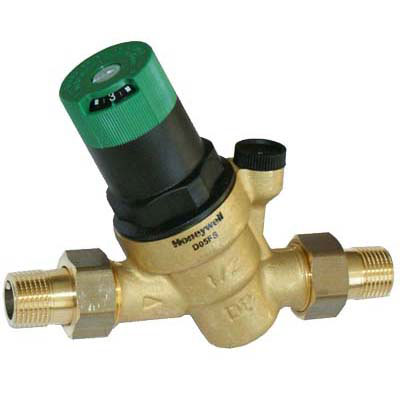

Standard pattern pressure reducing valve, D05F

Standard pattern pressure reducing valve, D05F
Pressure reducing valves of this type protect household water installations against excessive pressure from the supply. They can also be used for industrial or commercial applications within the range of their specification. By installing a pressure reducing valve, pressurisation damage is avoided and water consumption is reduced. The set pressure is also maintained constant, even when there is wide inlet pressure fluctuation. Reduction of the operating pressure and maintaining it at a constant level minimizes flow noise in the installation.
Approvals DVGW-approved for connection sizes 1/2" - 1"
Media Water, compressed air and nitrogen in consideration of valid standards (e.g. DIN EN 12502)
Body material brass, dezincification resistant
Spring bonnet material synthetic material
Port connection type external threads
Max. media temperature 70 oC
Static pressure PN25
Pressure setpoint range 1.5 ... 6 bar
Setpoint scale yes
Transparant strainer chamber no
Balanced seat design yes
Additional description
• The outlet pressure is set by turning the adjustment knob
• The set pressure is directly indicated on the set point scale
• The adjustment spring is not in contact with the potable water
• The valve insert is of high quality synthetic material and can be fully exchanged
• Integral fine filter
applcertmarkghostge23
applcertmarkwrasge23
applcertmarknffr03
applcertmarkacsfr03
Standard pattern with threaded male connections
Port diameterDN sizeFlow capacity KvsType
inchmm
1/2152.6D05F-1/2A  PDF
3/4202.8D05F-3/4A  PDF
1253D05F-1A  PDF
Standard pattern without fittings
Port diameterDN sizeFlow capacity KvsType
inchmm
1/2152.6D05F-1/2E  PDF
3/4202.8D05F-3/4E  PDF
1253D05F-1E  PDF
Accessories
DescriptionAdditional Product Type
Pressure gauge with housing diameter 63 mm, connection thread G 1/4, range 0 - 4 barM39K-A4
Pressure gauge with housing diameter 63 mm, connection thread G 1/4, range 0 - 10 barM39K-A10
Double ring wrench for removal of spring bonnet and filter bowlZR06K
Connection set with threaded connectionsVST06-A
Connection set with solder connectionsVST06-B
Spare Parts
DescriptionAdditional Product Type
Spring bonnet complete with setting scale for sizes R 1/2 - R 10901515
Valve insert complete (without filter) for sizes R 1/2 - R 1D05FA-1/2B
Replacement filter insert for sizes R 1/2 + R 1ES05F-1/2A
Synthetic blanking plug with O-ring (5 pcs)S06K-1/4
