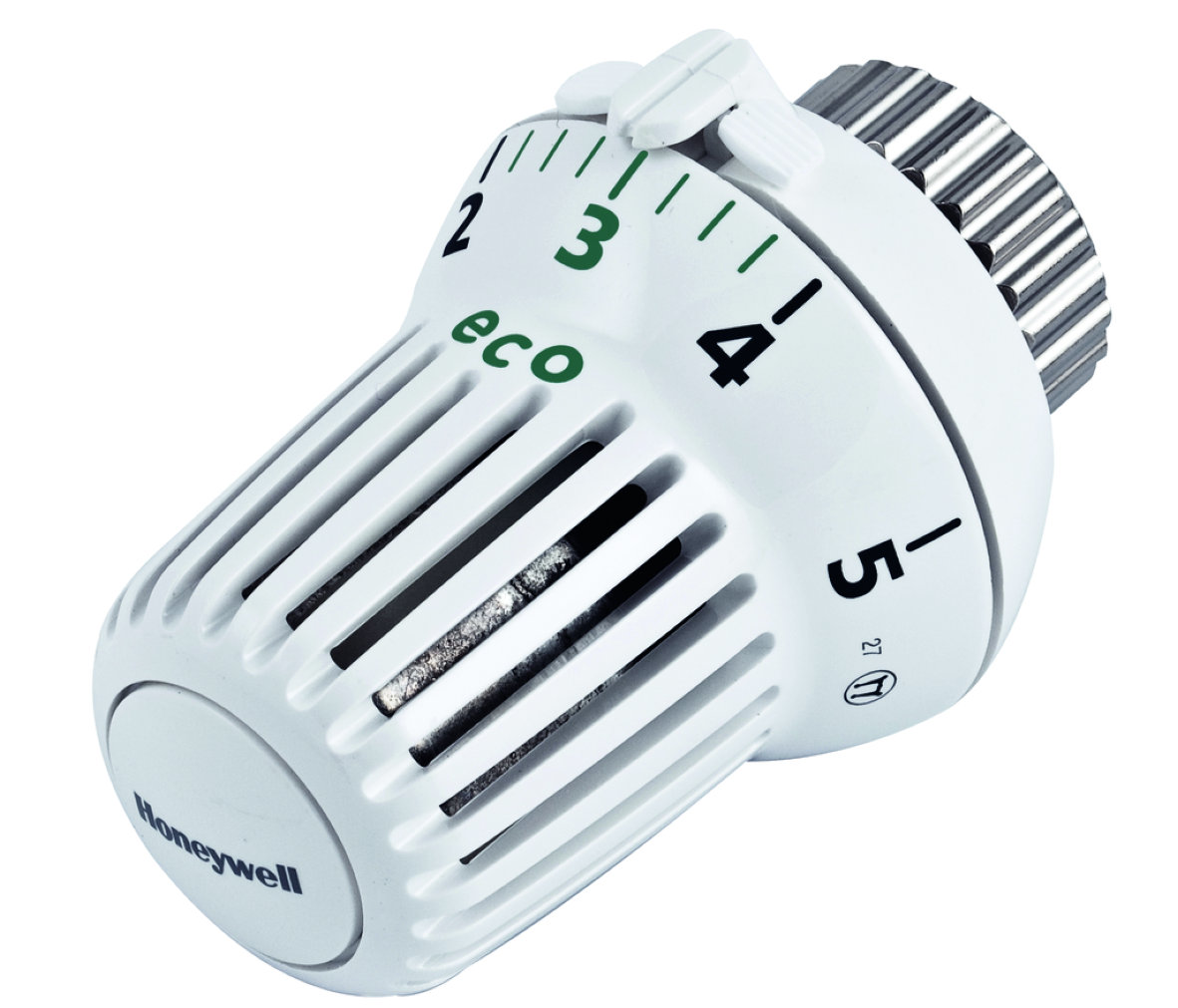

Thera-3 (T6000 Series) Design radiator thermostat
|
|
Design thermostatic radiator valve head with internal or remote sensing element. Good readability from every angle. 'ECO' marking for economical setting. Limiting and blocking of setpoint range without tools. Thermostats of this type
| • |
with M30 x 1.5 connection are suitable for all TRV bodies and radiator inserts with M30 x 1.5 connection and 11.5 mm closing dimension. |
| • |
with Danfoss (DA) type connection are suitable for TRV bodies and valve inserts with Danfoss (RA)type compatible snap connection. |
| • |
with Herz (Hz) type connection are
suitable for TRV bodies with M28 x 1.5 connection and 9.5 mm
closing dimension. |
|
For warm water heating systems
| • |
on thermostatic radiator valve bodies, or |
| • |
on compact radiator valve inserts. |
|
|
| Approvals |
Thermostats of this type conform to the European Standard
EN215 when used with certain Honeywell TRV bodies. |
| Setpoint blocking |
yes |
| Setpoint limiting |
yes |
| Temp. setpoint range |
6 ... 28 oC |
| Temperature scale |
1..5 |
| Body-head connection | Closing dimension | Temp. element place | Capillary tube length | Temperature element | Colour | Zero-position | Cover cap | Type |
|---|
| | mm | | mm | | | | | |
|---|
| M30 x 1,5 | 11.5 | internal | — | liquid-filled | white to RAL 9010 | — | MNG | T6001  |
| M30 x 1,5 | 11.5 | internal | — | liquid-filled | white to RAL 9010 | — | none | T6001C |
| M30 x 1,5 | 11.5 | internal | — | liquid-filled | white to RAL 9010 | — | Honeywell | T6001H |
| M30 x 1,5 | 11.5 | internal | — | liquid-filled | white to RAL 9010 | • | MNG | T6001W0 |
| M30 x 1,5 | 11.5 | internal | — | liquid-filled | white to RAL 9010 | • | none | T6001W0C |
| M30 x 1,5 | 11.5 | internal | — | liquid-filled | white to RAL 9010 | • | Honeywell | T6001W0H |
| M30 x 1,5 | 11.5 | internal | — | liquid-filled | anthracite | — | MNG | T6011 |
| M30 x 1,5 | 11.5 | internal | — | liquid-filled | anthracite | • | MNG | T6011W0 |
| M30 x 1,5 | 11.5 | internal | — | wax-filled | white to RAL 9010 | — | MNG | T6002 |
| M30 x 1,5 | 11.5 | internal | — | wax-filled | white to RAL 9010 | — | none | T6002C |
| M30 x 1,5 | 11.5 | internal | — | wax-filled | white to RAL 9010 | — | Honeywell | T6002H |
| M30 x 1,5 | 11.5 | internal | — | wax-filled | white to RAL 9010 | • | MNG | T6002W0 |
| M30 x 1,5 | 11.5 | internal | — | wax-filled | white to RAL 9010 | • | none | T6002W0C |
| M30 x 1,5 | 11.5 | internal | — | wax-filled | white to RAL 9010 | • | Honeywell | T6002W0H |
| Body-head connection | Closing dimension | Temp. element place | Capillary tube length | Temperature element | Colour | Zero-position | Cover cap | Type |
|---|
| | mm | | mm | | | | | |
|---|
| M30 x 1,5 | 11.5 | remote | 800 | liquid-filled | white to RAL 9010 | — | MNG | T600108 |
| M30 x 1,5 | 11.5 | remote | 2000 | liquid-filled | white to RAL 9010 | — | MNG | T600120 |
| M30 x 1,5 | 11.5 | remote | 5000 | liquid-filled | white to RAL 9010 | — | MNG | T600150 |
| M30 x 1,5 | 11.5 | remote | 800 | liquid-filled | white to RAL 9010 | • | MNG | T600108W0 |
| M30 x 1,5 | 11.5 | remote | 2000 | liquid-filled | white to RAL 9010 | • | MNG | T600120W0 |
| M30 x 1,5 | 11.5 | remote | 5000 | liquid-filled | white to RAL 9010 | • | MNG | T600150W0 |
| M30 x 1,5 | 11.5 | remote | 800 | liquid-filled | white to RAL 9010 | • | Honeywell | T600108W0H |
| M30 x 1,5 | 11.5 | remote | 2000 | liquid-filled | white to RAL 9010 | • | Honeywell | T600120W0H |
| Body-head connection | Closing dimension | Temp. element place | Capillary tube length | Temperature element | Colour | Zero-position | Cover cap | Type |
|---|
| | mm | | mm | | | | | |
|---|
| RA-type | — | internal | — | liquid-filled | white to RAL 9010 | — | MNG | T6001DA |
| RA-type | — | internal | — | liquid-filled | white to RAL 9010 | — | none | T6001DAC |
| RA-type | — | internal | — | liquid-filled | white to RAL 9010 | — | Honeywell | T6001DAH |
| RA-type | — | internal | — | liquid-filled | white to RAL 9010 | • | MNG | T6001DAW0 |
| RA-type | — | internal | — | liquid-filled | white to RAL 9010 | • | none | T6001DAW0C
|
